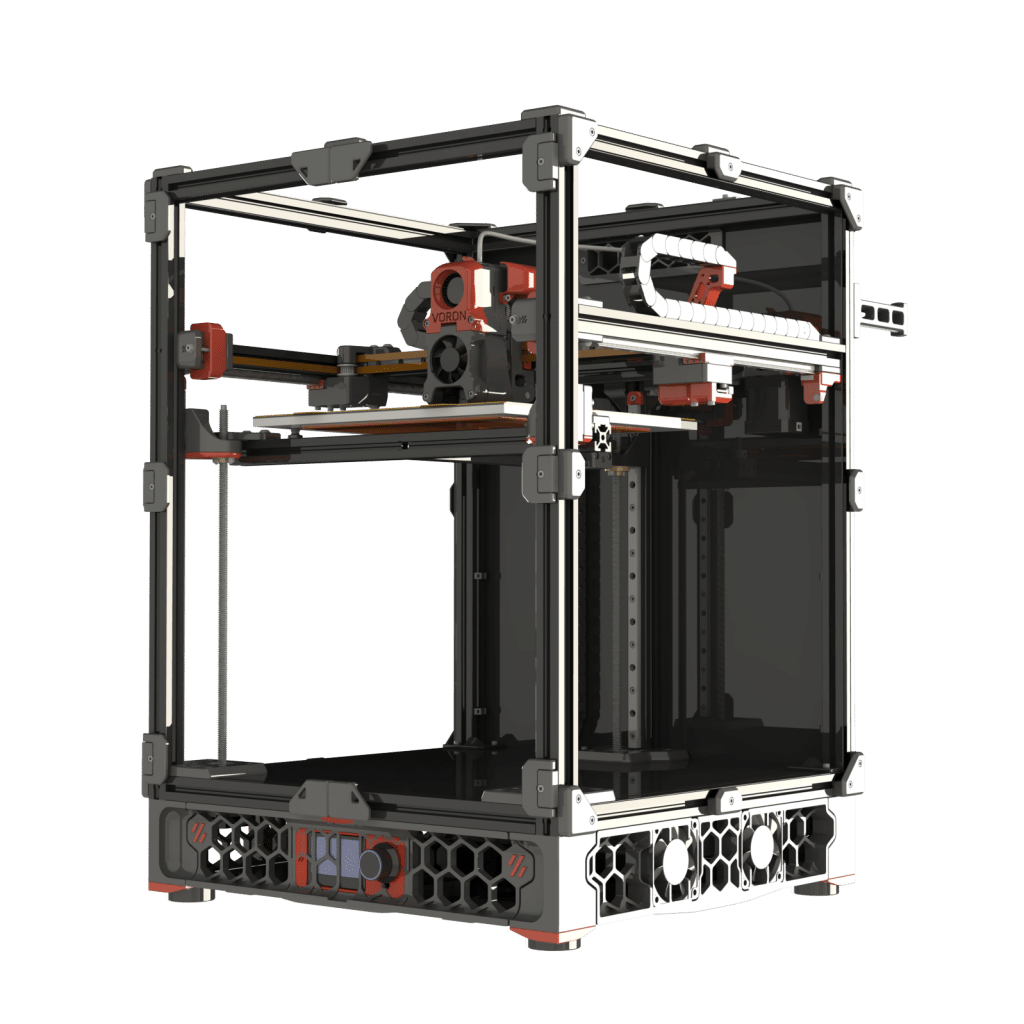

Trident CBT Lite
| Layer | Part | Product | Qty |
|---|---|---|---|
| Layer #1 | Frame | Trident 350x350x250 Frame | 1 |
| Fasteners | Trident Fasteners Kit | 1 | |
| Layer #2 | Steppers | NEMA17 Leadscrew Stepper | 3 |
| MOONS’ MS17HD6P4200 | 2 | ||
| Rails | MGN9H-300 – Z rails | 3 | |
| MGN9H-350/400 – Y rails | 2 | ||
| Frame | Frame – D Extrusion | 1 | |
| Motion | GT2 Pulley 20T 5ID 6W | 2 | |
| Motion | F695-2RS Bearing | 16 | |
| Misc | Rubber Feet | 4 | |
| Layer #3 | Rils | MGN12H-350/400 X rail | 1 |
| Frame | Frame – E extrusion | 1 | |
| Motion | GT2 Idler 20T 5ID 6W | 2 | |
| F695-2RS Bearing | 4 | ||
| GE5C Bearing | 3 | ||
| Frame | Frame – G extrusion | 1 | |
| Frame – F extrusion | 1 | ||
| Plate | MPX Cast aluminium Buildplate | 1 | |
| MPX Full-size Heater | 1 | ||
| – Integrated 150C self-recovery fuse | |||
| – Pre-installed RF125 fuse | |||
| – With extra thermistor for buildplate | |||
| Layer #4 | Plate | Double Sided Textured PEI Spring Steel | 1 |
| Panels | ABS Deck Panel [3mm] | 1 | |
| Frame | DIN Rail | 2 | |
| Layer #5 | Belt | Gates LL-2GT-6 RF 5m | 1 |
| Fans | GDSTime 6020 Dual Bearings Fan | ||
| – With XH2.54 Connector | 2 | ||
| Misc | Nylon Ties 4x200mm | 1 | |
| PC4-01 Bowden Connector | 1 | ||
| Bowden Tube 4×2 200mm | 1 | ||
| Bowden Tube 4×3 2m | 1 | ||
| SSR DIN Mount | 1 | ||
| 3M 5952 Tape 6mm3m1mm | 1 | ||
| EVA Tape 5mmx1mmx5m | 1 | ||
| EVA Tape 5mmx3mmx5m | 2 | ||
| 6×3 Neodimium Magnet | 10 | ||
| Power Inlet With 10A Fuse | 1 | ||
| Wiring | UK2.5 Terminals Set | 1 | |
| Y Endstop PCB with chamer thermistor | 1 | ||
| Pre-crimped Cables Set | 1 | ||
| M12 Cable Gland | 1 | ||
| Cable Chain 10×11 | 1 | ||
| PVC Trunking Set | 1 | ||
| Cable Sleeve | 1 | ||
| Straight stainless steel elastic filament | 1 | ||
| Z Stepper Label | 1 | ||
| Electronic | Meanwell LRS-200-24 | 1 | |
| Omron G3NB-210B-1 SSR | 1 | ||
| Bigtreetech M8P+CB1 | 1 | ||
| M8P Canbridge Cable | 1 | ||
| Bigtreetech TMC2209 | 6 | ||
| Bigtreetech TFT35 SPI Touchable Screen | 1 | ||
| Nevermore | GDSTime 5015 Fan | 2 | |
| XH2.54 Connectors Set | 1 | ||
| 6x3mm Magnet | 8 | ||
| Stealthburner | EBB SB2209 | 1 | |
| MOONS NEMA14 Stepper | 1 | ||
| BMG Set | 1 | ||
| GDSTime 4010 Fan | 1 | ||
| GDSTime 5015 Fan | 1 | ||
| SK6812 LED For Stealthburner | 1 | ||
| VORON Tap Kit | 1 | ||
| 24V 50W Hotend Heater | 1 | ||
| NTC100K B3950 | 1 | ||
| Extra screws Stealthbutner / EBB SB | 1 | ||
| Hotend | Phaetus Dragon UHF | 1 | |
| Layer #6 | Panels | Clear PC Panels [3mm] | 1 |
| ABS Panels [3mm] | 1 |
Trident CBT Standard
| Layer | Part | Product | Qty |
|---|---|---|---|
| Layer #1 | Frame | Trident 350x350x300 Frame | 1 |
| Fasteners | Trident Fasteners Kit | 1 | |
| Layer #2 | Steppers | MOONS’ LE174S-T0804-350 | 3 |
| MOONS’ MS17HD6P4200 | 2 | ||
| Rails | MGN9H-350 – Z rails | 3 | |
| MGN9H-350/400 – Y rails | 2 | ||
| Frame | Frame – D Extrusion | 1 | |
| Motion | GT2 Pulley 20T 5ID 6W | 2 | |
| Motion | F695-2RS Bearing | 16 | |
| Misc | Rubber Feet | 4 | |
| Layer #3 | Rils | MGN12H-350/400 X rail | 1 |
| Frame | Frame – E extrusion | 1 | |
| Motion | GT2 Idler 20T 5ID 6W | 2 | |
| F695-2RS Bearing | 4 | ||
| GE5C Bearing | 3 | ||
| Frame | Frame – G extrusion | 1 | |
| Frame – F extrusion | 1 | ||
| Plate | MPX Cast aluminium Buildplate | 1 | |
| MPX Full-size Heater | 1 | ||
| – Integrated 150C self-recovery fuse | |||
| – Pre-installed RF125 fuse | |||
| – With extra thermistor for buildplate | |||
| Layer #4 | Plate | Double Sided Textured PEI Spring Steel | 1 |
| Panels | ABS Deck Panel [3mm] | 1 | |
| Frame | DIN Rail | 2 | |
| Layer #5 | Belt | Gates LL-2GT-6 RF 5m | 1 |
| Fans | GDSTime 6020 Dual Bearings Fan | ||
| – With XH2.54 Connector | 2 | ||
| Misc | Nylon Ties 4x200mm | 1 | |
| PC4-01 Bowden Connector | 1 | ||
| Bowden Tube 4×2 200mm | 1 | ||
| Bowden Tube 4×3 2m | 1 | ||
| SSR DIN Mount | 1 | ||
| 3M 5952 Tape 6mm3m1mm | 1 | ||
| EVA Tape 5mmx1mmx5m | 1 | ||
| EVA Tape 5mmx3mmx5m | 2 | ||
| 6×3 Neodimium Magnet | 10 | ||
| Power Inlet With 10A Fuse | 1 | ||
| Wiring | UK2.5 Terminals Set | 1 | |
| Y Endstop PCB with chamer thermistor | 1 | ||
| Pre-crimped Cables Set | 1 | ||
| M12 Cable Gland | 1 | ||
| Cable Chain 10×11 | 1 | ||
| PVC Trunking Set | 1 | ||
| Cable Sleeve | 1 | ||
| Electronic | Meanwell LRS-200-24 | 1 | |
| Omron G3NB-210B-1 SSR | 1 | ||
| Bigtreetech M8P+CB1 | 1 | ||
| M8P Canbridge Cable | 1 | ||
| Bigtreetech TMC2209 | 6 | ||
| Bigtreetech TFT35 SPI Touchable Screen | 1 | ||
| Nevermore | GDSTime 5015 Fan | 2 | |
| XH2.54 Connectors Set | 1 | ||
| 6x3mm Magnet | 8 | ||
| Stealthburner | EBB SB2209 | 1 | |
| MOONS NEMA14 Stepper | 1 | ||
| BMG Set | 1 | ||
| GDSTime 4010 Fan | 1 | ||
| GDSTime 5015 Fan | 1 | ||
| SK6812 LED For Stealthburner | 1 | ||
| VORON Tap Kit | 1 | ||
| 24V 50W Hotend Heater | 1 | ||
| NTC100K B3950 | 1 | ||
| Extra screws Stealthbutner / EBB SB | 1 | ||
| Hotend | Phaetus Dragon UHF | 1 | |
| Layer #6 | Panels | Clear PC Panels [3mm] | 1 |
| ABS Panels [3mm] | 1 |
Andrew (verified owner) –
Awesome kit. Everything is great quality and went together perfectly, aside from the z-endstop pin that’s a bit short (I needed to order a 5x35mm for it to work). Really happy I ordered
